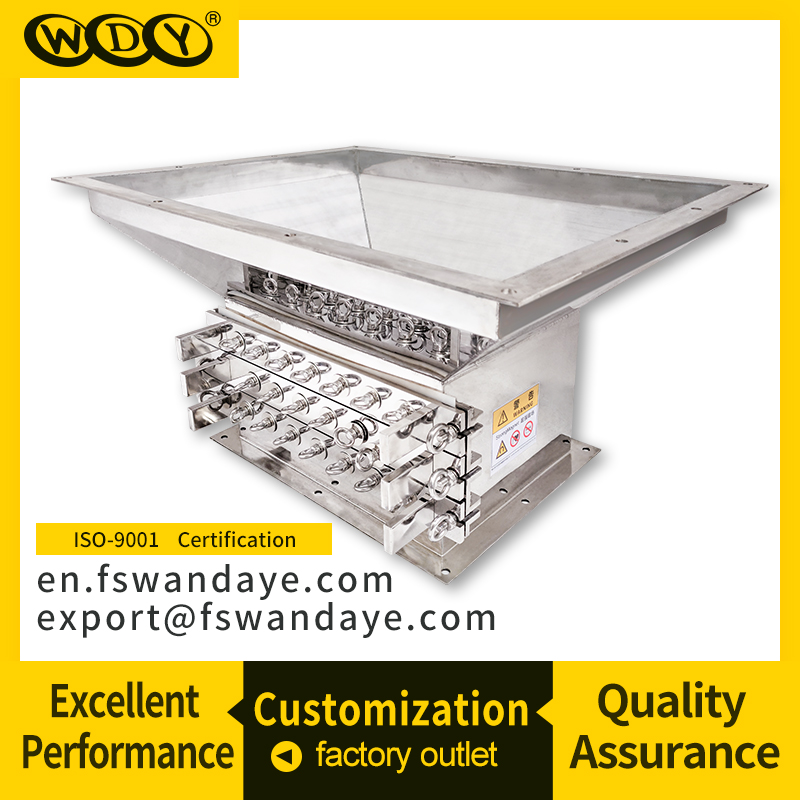

Drawer magnet with super magnetic force 25-32 mm diameter

Drawer magnets consists of a row, or most commonly, rows of round magnetic tubes that are assembled into drawers. Drawer Magnets are recommended for fine cohesive materials such as magnesium oxide, zircon powder, fly ash, aluminum, gypsum, lime, powdered sugar, cornstarch, flour & pulverized minerals and ceramics.

The drawer magnets are available with either Ferrite magnets or with High Intensity. Rare Earth Nd-Fe-B Magnets.

Product characteristic

1. Silicate High Gradient Magnetic Separator,The magnetic bar of the machine adopt stronger rare earth permanent magnet or oxidational magnetic iron as the source of magnet. Compared with the electromagnetic iron machine, it can save power consumption.

2. Using super magnetic force, it sort out the tiny iron impurity, so as to protect the next mineral processing separator equipment and enhance the purity of material.

3. The strong magnetic intensity of magnetic bar has 25 mm diameter of with surface of magnetic field intension for more than 12000 gauss which make the iron removal convenient and quick, the air cylinder pull the magnetic bar layer by layer and the magnetic material absorbed on the magnetic bar will drop off automatically with continuous work.

4. On both ends of the magnetic bar, it can be made according to the requirements, like threaded holes, screw holes, flying rings, conical point and so on, which is convenient for installation and fixity.

5. The material can continue to work when draw the iron elimination piece by piece while having no need to stop feeding.

Operation process

Drawer magnet with super magnetic force 25 mm diameter

(1) The drawer magnets can be fitted simply in existing pipe line or outlet of various equipments like pulverizers, blenders etc.
(2) Generally each unit comprises of permanent magnetic grids mounted one above the other.
(3) For special applications there are systems with multiple grids.
(4) The grids are easily removable for cleaning.

(5) Certain types of drawer magnets handle a wide range of separation tasks in gravity conveying systems
(6) Normally the ferrite or rare earth and NdFeB magnets are used in the drawer magnets.

Application scope

(1)Mining industries
(2) Pharmaceuticals industries
(3) Food processing industries

(4) Cement, gypsum and other types of small scale industries.
(5) Industries dealing with powdery substance

Technology parameter
