    ISO Certification Magnetic Separator Machine For Non Ferrous Metal / Ore quartz feldspar

    Ask Lasest Price
    Brand Name : WANDAYE
    Model Number : WD500
    Certification : ISO9001:2008
    Price : Negotiable
    Delivery Time : Within 25 days after the advance payment is made
    Supply Ability : 15pcs per month
    • Product Details
    • Company Profile

    ISO Certification Magnetic Separator Machine For Non Ferrous Metal / Ore quartz feldspar

    Magnetic Separator Machine For Nonferrous Metal Ore With ISO


    ISO Certification Magnetic Separator Machine For Non Ferrous Metal / Ore quartz feldspar

    Description

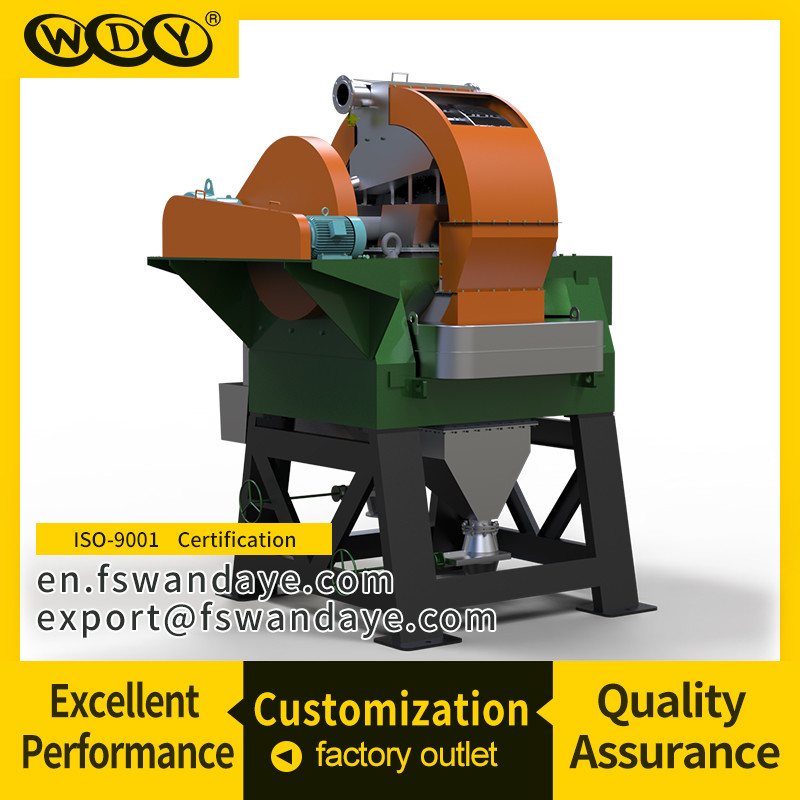

    The Wet High Intensity Magnetic Separator is a high gradient vertical ring magnetic separator.

    A DC current is applied to the coil to form a magnetic field in the separating compartment containing the matrix. The matrix is a select type of magnetic iron that fills the moving ring or carousel. The matrix becomes magnetically induced when within the electromagnet’s magnetic field. Slurried feed is introduced into the magnetic matrix, and is carried through the magnetic field. At this point, the feebly magnetic particles are attracted to the matrix by the very high magnetic gradient while the non-magnetic particles are allowed to pass through.

    Application

    The Wet High Intensity Magnetic Separator can be used in a wide variety of applications throughout the mining and metals industry. Some typical applications are:

    Ferrous metal ore: Recovery of hematite, limonite, siderite, chromite, manganese ores, etc.

    Nonferrous metal ore: Separation of fine embedded wolframite from quartz, magnetic pyrite from cassiterite in a polymetallic sulfide ore, and cassiterite, wolframite from limonite, etc. Separation of tungsten, wolframite from garnet, etc.

    Rare earth metal: Recovery of titanium iron ore, iron and tantalum-niobium ore, lithium mica, monazite, and phosphorus yttrium ore. Separation of lithium pyroxene from hornblende, tantalum from niobium, iron ore from microlite, titanium iron ore from man-made rutile, and rutile from garnet etc.

    Non-metallic ores: Purification of glass ceramics industrial raw materials like quartz, feldspar and kaolin, Purification of high-temperature refractory silicates like and alusite & kyanite. Elimination of iron, hornblende, mica, electrical stone, garnet and other harmful impurities, etc.

    Other applications: Wastewater treatment for steel mills and power plants or removing catalyst pollution from chemical raw materials.


    Technical data

    ModelWD-500
    Swivel outer diameter(mm)500

    Ore size(mm),

    (-200 mesh %)

    -1.02

    Ore

    density(%)

    10-40
    Ore pulp transit capability(m³/h)0.25-0.5

    Dry ore throughput(t/h)

    0.03-0.125
    Rated background magnetic field(T)1.0
    Rated energizing current(A)1200
    Rated energizing voltage(V)8.3
    Rated exciting power(Kw)10
    Swivel rotating power(Kw)0.18
    Rotating pulsation power(KW)0.37

    Pulse

    stroke(mm)

    0-50
    Pulse speed(times/min)0-400
    Water consumption(Mpa)0.1-0.2
    Water consumption(m³/h)0.75-1.5
    Cooling water processing(m³/h)1.5-2
    Weight of biggest parts(T)0.3
    dimension(length x width x height,mm)1800*1400*1320


    Note: Technical data and specification subject to change. Special wet high intensity magnetic separator can be made on request, customers have to just send their technical data and application required for our engineers.
