    Widely Applicable Dry Powder Magnet Ferrous Impurity Separation for Quartz feldspar powder chemical partical

    Ask Lasest Price
    Brand Name : WDY
    Model Number : WG430-V-11
    Certification : ISO9001:2008
    Price : Negotiable
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : Within 25 days after the advance payment is made
    • Product Details
    • Company Profile

    Widely Applicable Dry Powder Magnet Ferrous Impurity Separation for Quartz feldspar powder chemical partical

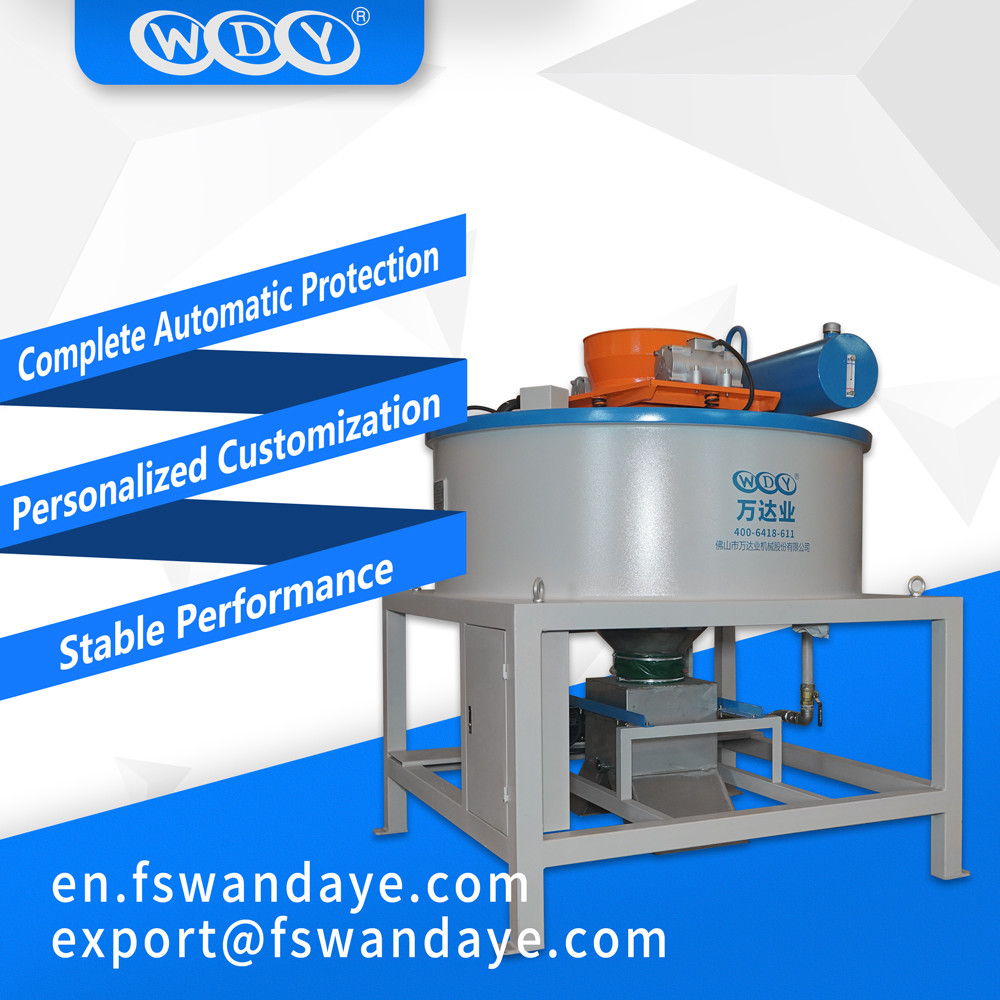

    New generation dry powder magnetic iron separator WG430-V-11


    Widely Applicable Dry Powder Magnet Ferrous Impurity Separation for Quartz feldspar powder chemical partical

    Features:

    1.High efficiency
    2.Low energy consumption
    3.ISO;CE;BV Approved
    4.Fine beneficiating results
    5.Competitive price


    Application of magnetic separator


    Magnetic separator separates the mineral according to magnetic intensity differences in non-uniform field,and it is mainly applied to iron ore, tin,chromium,manganese,niobium and tantalum,rare earth ,industrial minerals,heavy mineral sands,garnet,phosphate,heavy media separation,recyclin,etc.


    Working Principle of Magnetic Separator


    The Magnetic Separator is used for separating crude mineral by different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.


    Parameters of magnetic separator

    ModelWG160B-V-3WG220B-V-3WG300-V-7WG220B-V-11WG430-V-11WG220-V-15WG600-V-20
    Magnetic field strength(t)2233353
    Input voltage(VAC)380220380380380380380
    Maximun output current(A)1572020203040
    Maximum coil power(KW)33711111520
    Insulation categoryEEEEEEE
    Cooling methodwater and oil coolingwater and oil coolingwater and oil coolingwater and oil coolingwater and oil coolingwater and oil coolingwater and oil cooling
    Magnetic lumen diameter(mm)160220300220430220600
    Yield(m3/h)0.5-1.5438331.5-40.5-31.5-61-33-8
    Dimension(mm)700*700860*8601320*13201300*1101500*15001350*11001500*1500
    *1450*1540*2500*1800*2500*1850*2000
    Main machine weight(kg)45049010201130121015002000
    Usage60-300 mesh feedstock of iron elimination


    FAQ

    1. What
    is the MOQ of your machine?

    A: Our MOQ is 1 set

    2. How long is the machine warranty period?

    A: The product warranty period is 12 months

    In order to give you the responsible quotation, pls kindly inform us the following details:

    1. What kind of material you are going to deal with?

    2. What's the granularity of the material?

    3. What's the producing capacity you are going to achieve?

    Most suitable machine would be recomended to you according to your informations.
