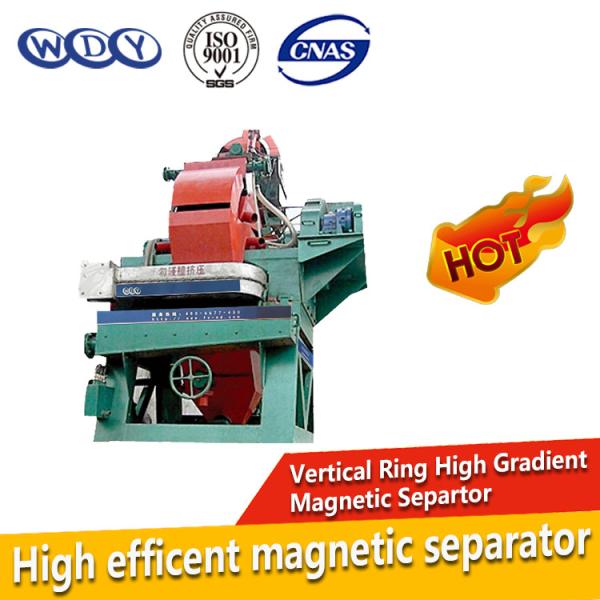

    Vertical ring high gradient magnetic separator, used in Fe plant, remove iron

    Ask Lasest Price
    Brand Name : WANDAYE
    Model Number : WD1500
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : Within 10 days after the advance payment is made
    • Product Details
    • Company Profile

    Vertical ring high gradient magnetic separator, used in Fe plant, remove iron

    Vertical ring high gradient magnetic separator, used in Fe plant, remove iron

    Selection principles


    Different purpose according to users, to select magnetic separator with different magnetic field intensity. For example: in gold, iron ore, copper and other industries, mainly to recycle iron in pulp, which has high value, requiring not only to choose the iron in ore and tailings, but also asked not to bring a lot of impurities, so as not to affect the grade, In the way, we must select the adjustable magnetic field intensity midfield magnetic separator.


    structure and working principles


    This machine is based on the different magnetic susceptibility between the ore minerals, and do mineral separattion by magnetic force. When the slurry into the sorting area, due to different magnetic susceptibility, under the magnetic force, the magnetic particles are adsorbed on the cylinder surface, with the cylinder rotation to the concentrate port of discharge, then from the magnetic system into the concentrate tank by concentrate rinse water; gangue and weak magnetic minerals can not be attracted by the magnetic force, under the slurry flow force in the tank, they gravity into tailings discharge pipe in the reverse direction of cylinder rotating.


    Technical parameter


    Model

    WD-1250

    WD-1500

    WD-1750

    WD-2000

    Swivel outer diameter(mm)

    1250

    1500

    1750

    2000

    Ore size(mm),

    (-200 mesh %)

    -1.2(30-100)

    -1.2(30-100)

    -1.2(30-100)

    -1.2(30-100)

    Ore density(%)

    10-40

    10-40

    10-40

    10-40

    Ore pulp transit capability(m³/h)

    20-50

    50-100

    75-150

    100-200

    Dry ore throughput(t/h)

    10-18

    20-30

    30-50

    50-80

    Rated background magnetic field(T)

    1.0

    1.0

    1.0

    1.0

    Rated energizing current(A)

    850

    950

    1200

    1200

    Rated energizing voltage(V)

    23

    29

    31

    35

    Rated exciting power(Kw)

    19

    27

    37

    40

    Swivel rotating power(Kw)

    1.5

    3

    4

    5.5

    Rotating pulsation power(Kw)

    2.2

    4

    4

    7.5

    Pulse stroke(mm)

    0-20

    0-30

    0-30

    0-30

    Pulse speed(times/min)

    0-300

    0-300

    0-300

    0-300

    Water consumption(Mpa)

    0.15-0.3

    0.2-0.3

    0.2-0.3

    0.2-0.3

    Water consumption(m³/h)

    30-45

    60-90

    80-120

    100-150

    Cooling water processing(m³/h)

    2.5-3

    3-4

    4-5

    5-6

    Weight of biggest parts(T)

    4

    5

    11

    14

    dimension(length x width x height,mm)

    3200x2340x2700

    3600x2900x3200

    3900x3300x3800

    4200x3550x4200
