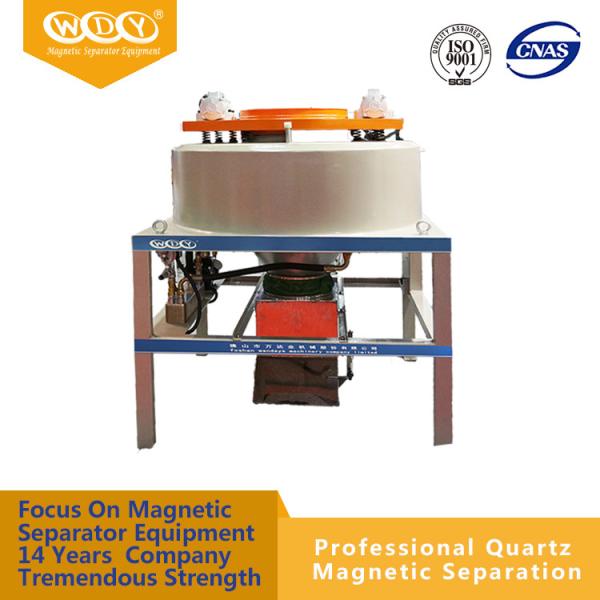

    Energy - Saving Dry Powder Magnetic Iron Ore Separator Iron Remover For Non - Metallic Mineral

    Ask Lasest Price
    Brand Name : WDY
    Model Number : WD-20A600
    Certification : ISO9001:2008
    Price : Negotiable
    Delivery Time : Within 10 days after the advance payment is made
    • Product Details
    • Company Profile

    Energy - Saving Dry Powder Magnetic Iron Ore Separator Iron Remover For Non - Metallic Mineral

    Energy - Saving Dry Powder Iron Remover Non - Metallic Mineral Magnetic Separator


    Foshan Wandaye Machinery Company Limited is a national high-tech enterprise, owns a number of invention patents, with research and development production, major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries. The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator, vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory, can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc.


    Product characteristic


    1. Electromagnetic dried-powder separator is a newly development machine.The characteristics of magnetic system are large wrap angle, multi-magnetic-pole. The absolute value of magnetic flux density of separation area is evenly.We can design different magnetic field intensity as the property of raw ores. 2. Also, dried-powder separator doesn’t need to come over the gravity and resistance of the raw material.

    3. When the nonmagnetic minerals break away from the magnetic field, it can depart from the magnetic cylinder very well. With the mechanical vibrating equipment, it not only can improve the efficiency of iron remove but also can be easier to discharge the iron.


    Operation process


    Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.

    After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.

    Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.


    Application scope


    1. Electromagnetic dried-powder separators are applied in process the fine mineral particle.

    2. The magnetic fine ferrous mineral particle such as hematite, martite, limonite, siderite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.

    3. Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.

    For example:Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation ,Polarity powder material Beneficiation,active pharmaceutical ingredient(API)treatment,antibiotics treatment,fiber stuff treatment,organic chemical industry and related equipment ,Fine chemicals and related equipment.


    Technical parameter


    Model

    3A160

    3A220

    7A300

    11A220

    11A430

    15A220

    Magnetic field strength(T)

    2

    2

    3

    3

    3

    5

    Input voltage(ACV)

    380

    220

    380

    380

    380

    380

    Maximum output current(DCA)

    15

    7

    20

    20

    20

    30

    Maximum coil power(KW)

    3

    3

    7

    11

    11

    15

    Insulation method

    E

    E

    E

    E

    E

    E

    Cooling method

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    Magnetic lumen diameter(mm)

    160

    220

    300

    220

    430

    220

    yield(T)

    0.5-1.5

    1-3

    1.5-4

    0.5-3

    1.5-6


    dimension(mm)

    700*700*1450

    860*860*

    1540

    1320*1320*

    2500

    1300*1100*

    1800

    1500*1500*

    2500

    1350*1100*1850

    Main machine weight

    (KG)

    450

    490

    1020

    1130

    1210

    1500

    Usage

    Applicable for 60-300 mesh feedstock of iron elimination
