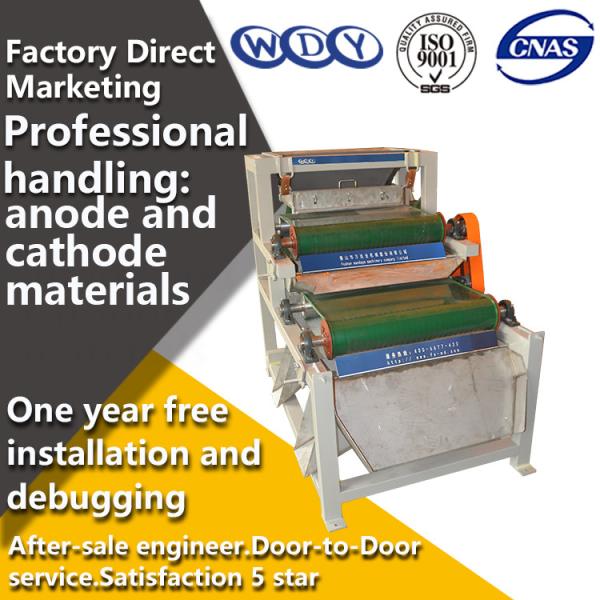

1.5kw 380v Magnetic Separator Machine Magnetic Separation Conveyor

    Buy cheap 1.5kw 380v Magnetic Separator Machine Magnetic Separation Conveyor from wholesalers

    Buy cheap 1.5kw 380v Magnetic Separator Machine Magnetic Separation Conveyor from wholesalers
    • Buy cheap 1.5kw 380v Magnetic Separator Machine Magnetic Separation Conveyor from wholesalers

    1.5kw 380v Magnetic Separator Machine Magnetic Separation Conveyor

    Ask Lasest Price
    Brand Name : WDY
    Model Number : Double Layer Belt Conveyor Iron remover
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Delivery Time : Within 10 days after the advance payment is made
    • Product Details
    • Company Profile

    1.5kw 380v Magnetic Separator Machine Magnetic Separation Conveyor

    1.5kw 380v Magnetic Separator Machine Magnetic Separation Conveyor

    Cross belt Magnetic Separator magnets provide a true self cleaning industrial magnetic separator systems solution, for continuous metal recovery from your conveyed materials. Ferrous metals are magnetically pulled out of your non-ferrous conveyed materials; ferrous materials collect on the self cleaning magnetic separator belt and are conveyed and discharged to your hopper.
    Electromagnetic separator self-cleaning type uses a two-pulley design. self-cleaning magnets are mounted in line with the material flow, while cross belt self-cleaning magnets remove the ferrous materials over the side of the conveyor.


    Features


    1.Easy installation and maintenance

    2.Dust and rain protection

    3.Robust design


    Operation process


    The raw material flow into feeding entrance, then it land on the belt, through the belt conveyor to the magnetic roller.Then all iron material in the raw material adsorbed on the magnetic pole, last it follow the belt running to the non-magnetic area.And the iron material will automatically fall into the iron box.


    Application scope


    Applicable for dry powder iron removal in ceramic industry, for example, quartz sand, refractory of non-metallic materials and the iron removal of Scrap metal.


    Technical parameter


    Product capacity(T)

    4-10

    Magnetic field intension(GS)

    15000

    Magnetic roller specification(mm)

    φ150 X 1200

    Power(KW)

    1.5

    Input voltage(V)

    380

    Motor rotation quantity(RPM)

    1390

    Belt rotation quantity(cycle/min)

    46
