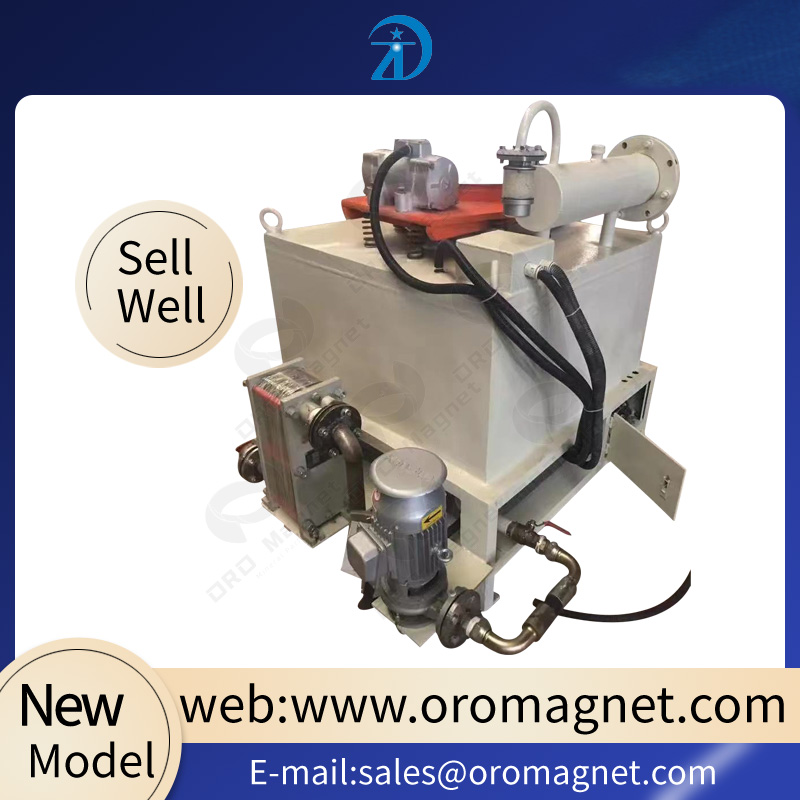

model 15K35 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin

Foshan Zhongtai Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap model 15K35 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin from wholesalers

    Buy cheap model 15K35 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin from wholesalers
    • Buy cheap model 15K35 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin from wholesalers

    model 15K35 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin

    Ask Lasest Price
    Brand Name : ZT
    Model Number : 15K350
    Certification : ISO9001:2008
    Price : Negotiable
    Delivery Time : Within 35 days after the advance payment is made
    Supply Ability : 50 SETS PER MONTH
    • Product Details
    • Company Profile

    model 15K35 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin


    Dry powder magnetic iron separator for iron ore with discount price



    Introduction of Magnetic separator:


    Magnetic separator can be used for wet dressing of ores with sizes less than 3mm, such as magnetite, pyrrhotine, calcined ore, limetite etc. It also can be used to remove the iron for processing of coal, non-metalic mineral and construction materials. We can produce magnetic separator into 3 types: uniflow, semi countercurrent, reflux type. There is a other type sperator we called dry magnetic separator.


    Application of Magnetic Separator:


    Magnetic Separators are designed to recover ferromagnetic materials. The Magnetic Separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline.


    Magnetic system of Magnetic separator:


    The magnetic system of magnetic separator is made by compositive materials of high quality ferrite materials, rare earth magnetic steel and the magnetic induction is 100-600mT. It is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.


    Features of Magnetic separator:


    1. Simple structure, easy to operate;
    2. Large handling, low power

    3. Adjustable: The number of axial magnetic can be adjusted in accordance with material characteristics;
    4. Easy to maintain: Stainless steel machine and full-closed operation enable an easy clean;
    5. Max. Magnetic intensity: 8,000 OE;

    6. Widely function: suitable for processing various bulk materials and will not blocked for its compact structure. Also has disaggregating function for sticky and poor-fluidity powders;
    7. High separating effect: Optimized magnetic circuit offers high intensity magnetic field for better separating effect.


    Model3A2207A30011A22011A43015A22020A600
    Magnetic field strength(T)22.53333.5
    Input voltage(ACV)380380380380380380
    Maximum output current(DCA)71515152035
    Maximum coil power(KW)3711111520
    Insulation methodEEEEEE
    Cooling methodwater and oil double coolingwater and oil double coolingwater and oil double coolingwater and oil double coolingwater and oil double coolingwater and oil double cooling
    Magnetic lumen diameter(mm)220300220430220600

    yield

    (T)

    1-31.5-40.5-31.5-61-33-8
    dimension(mm)

    830*830*

    1460

    1320*1320*

    1450

    1300*1100*

    1850

    1600*1720*

    2500

    1350*1100

    *1850

    1500*1500

    *1850

    Main machine weight(KG)49010201130121015002000
    Usage

    Applicable for 60-300 mesh feedstock of iron elimination
