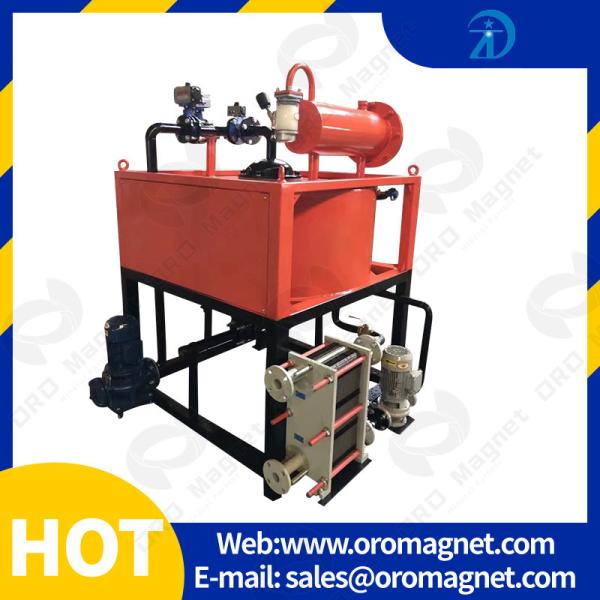

    Ceramic Food Industries 380v Wet Magnetic Separator With High Magnetic Field Easy Maintenance

    China High Efficient Magnetite Wet Magnetic separator of iron elimination


    Wet Magnetic Separator / Magnetic Drum Separators Food Industries Use/Ceramic/mine/Chemical


    Product characteristi


    1. High gradient magnetic field .

    2. Applying water to cool the machine, enhanced the life span of the machine.

    3. The valve have a good quality and can be durable.

    4. Very easy to discharge the iron.


    Operation process


    Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing. After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.


    Technology parameter of contrast


    Model

    1.5A160

    3A89

    3A190

    7A250

    11A250

    18.5A250

    20A400

    Magnetic field strength(T)

    2.5

    2.5

    2

    3

    3.5

    3

    3.5

    Input voltage(ACV)

    220

    380

    220

    380

    380

    380

    380

    Maximumoutput current(DCA)

    10

    7

    7

    20

    20

    55

    25

    Maximum coil power(KW)

    1.5

    3

    3

    7

    11

    18.5

    20

    Insulation method

    E

    E

    E

    E

    E

    E

    E

    Cooling method

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    Water and oil double cooling

    Magnetic lumen diameter(mm)

    160

    89

    190

    250

    250

    250

    400

    Pipe size(mm)

    50

    50

    50

    89

    89

    89

    89

    yield(m³/h)

    3-10

    0.1-0.5

    5-10

    10-30

    10-30

    10-30

    20-60

    dimension(mm)

    946(H)

    500*500*

    1000

    860*860*

    1540

    1200*1200*

    1850

    1200*1200*

    1850

    1400*1400*1850

    1500*1500*

    1850

    Main machine weight

    (KG)

    180

    250

    510

    1050

    1210

    1500

    3000

    Usage

    Applicable for 40-400 mesh feedstock of iron elimination


    Application scope


    Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.
