Brand Name : | ZT |
Model Number : | X500 |
Certification : | ISO9001:2008 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 50 SETS PER MONTH |
Delivery Time : | Within 30 days after the advance payment is made |
Features:
Technology parameter

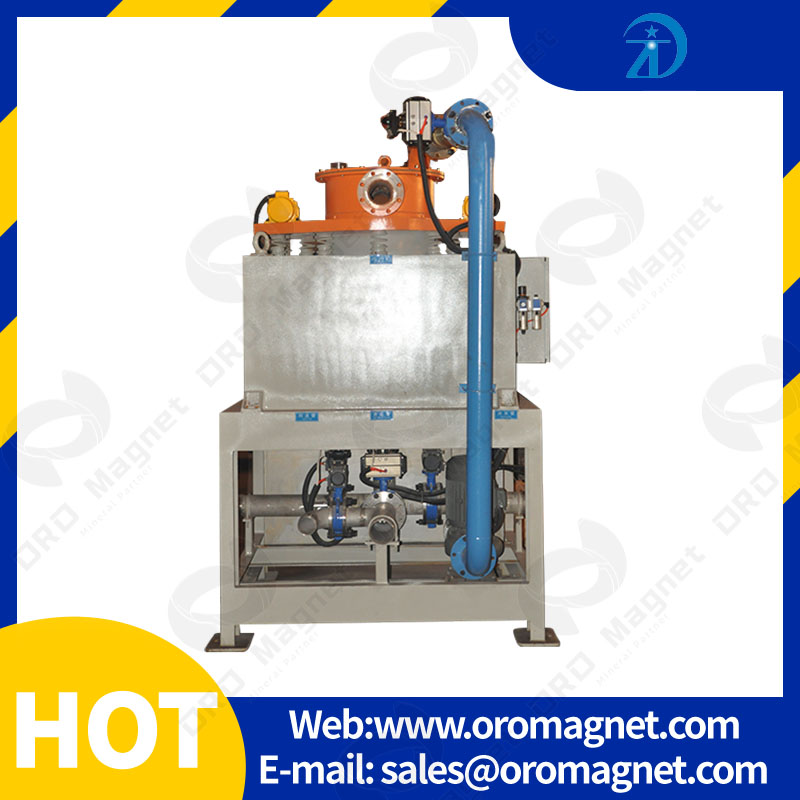

Model: X500
Magnetic field strength(T): 5
Input voltage(ACV): 380
Maximum output(DCA): 1400
Maximum coil power: 45KW
Insulation method: E
Cooling method: Water cooling
Magnetic lumen diameter: 530mm
Pipe size: 100mm
Yield(m³/h): 20-50
Dimension(mm):2000*1600*2800
Main machine weight: 9580KG
Usage: Applicable for 40-400 mesh feedstock of iron elimination
Application scope
Non-metallic mineral: It is used for purifying the non-metallic mineral such as quartz,
feldspar and kaolin.
Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
Non-ferrous metals mineral: used for separating wolframite from pyrope
Rare earth ore: recycle tantalum-niobium ores and monazite.
other industries: iron ore, effluent of power station disposal, disposal of
contaminated chemical raw material.
![]() |
