Water Cooling Ceramic Slurry Magnetic Separation Equipment 25000Gs

    Buy cheap Water Cooling Ceramic Slurry Magnetic Separation Equipment 25000Gs from wholesalers

    Buy cheap Water Cooling Ceramic Slurry Magnetic Separation Equipment 25000Gs from wholesalers
    • Buy cheap Water Cooling Ceramic Slurry Magnetic Separation Equipment 25000Gs from wholesalers

    Water Cooling Ceramic Slurry Magnetic Separation Equipment 25000Gs

    Ask Lasest Price
    Brand Name : ZT
    Model Number : ZT-750-V
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 20 SETS
    Delivery Time : Within 30 days after the advance payment is made
    • Product Details
    • Company Profile

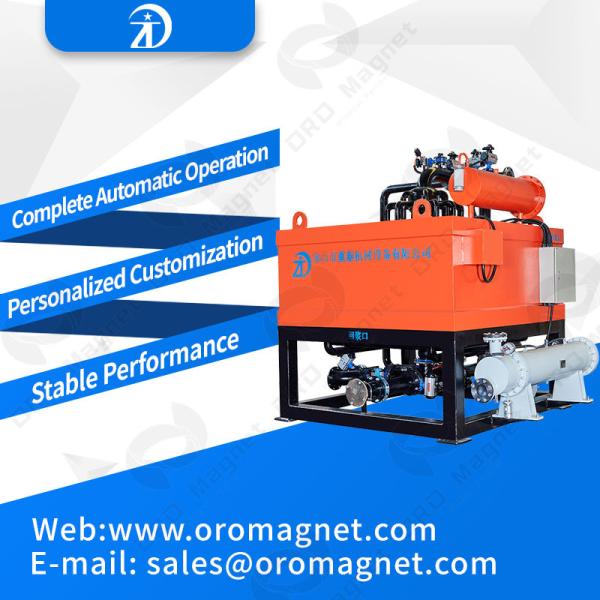

    Water Cooling Ceramic Slurry Magnetic Separation Equipment 25000Gs

    Water-cooling automatic electromagnetic slurry separator equipment for kaolin feldspar ceramic slurry
    Foshan Zhongtai Machinery Company Limited is a national high-tech enterprise, owns a number of invention patents, with research and development production, major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries. The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator, vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory, can be customized for magnetic separator. Zhongtai Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc.




    Features:

    • Durable Efficient
    • Easy to operate Intelligence
    • High performance save energy
    • Touch Screen Interface
    • Easy-to-Use, Fully Automated Operation EP

    Technology parameter

    ModelZT-500-VZT-750-VZT-1000-VZT750-VZT1000-VBZT1200-VZT1500-V
    Magnetic field strength(T)2.02.52.52.02.02.53.0
    Input voltage(ACV)380380380380380380380
    Maximum coil power(KW)7510315082120150180
    Insulation methodEEEEEEE
    Cooling methodwater coolingwater coolingwater coolingoil coolingoil coolingoil coolingoil cooling
    Magnetic lumen diameter(mm)5007501000750100012001500
    Pipe size(mm)100150200150200250300
    yield(m³/h)20-4530-6550-10030-6550-10050-15070-180
    dimension(mm)2328*1745*26422659*1978*25183052*2185*28142958*2294*30913503*2658*33923950*2926*37464349*3180*3706
    Main machine weight14000166002600016000280005300065000
    (KG)
    UsageApplicable for 40-400 mesh feedstock of iron elimination




    Application scope

    Non-metallic mineral: It is used for purifying the non-metallic mineral such as quartz, feldspar and kaolin.
    Non-ferrous metals mineral: used for separating wolframite from pyrope
    Rare earth ore: recycle tantalum-niobium ores and monazite.
    other industries: iron ore, ceramic slurry effluent of power station disposal, disposal of contaminated chemical raw material.
