    Strong Permanent Magnets , Magnetic Ore Separator Customize

    Ask Lasest Price
    Brand Name : ZT
    Model Number : Half counter-current water concentration Magnetic Drum Separator
    Certification : ISO9001:2008
    Price : Negotiable
    Delivery Time : Within 15 days after the advance payment is made
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    Supply Ability : 500 SETS PER MONTH
    • Product Details
    • Company Profile

    Strong Permanent Magnets , Magnetic Ore Separator Customize

    Strong Permanent Magnets , Magnetic Ore Separator Customize Magnetic Drum

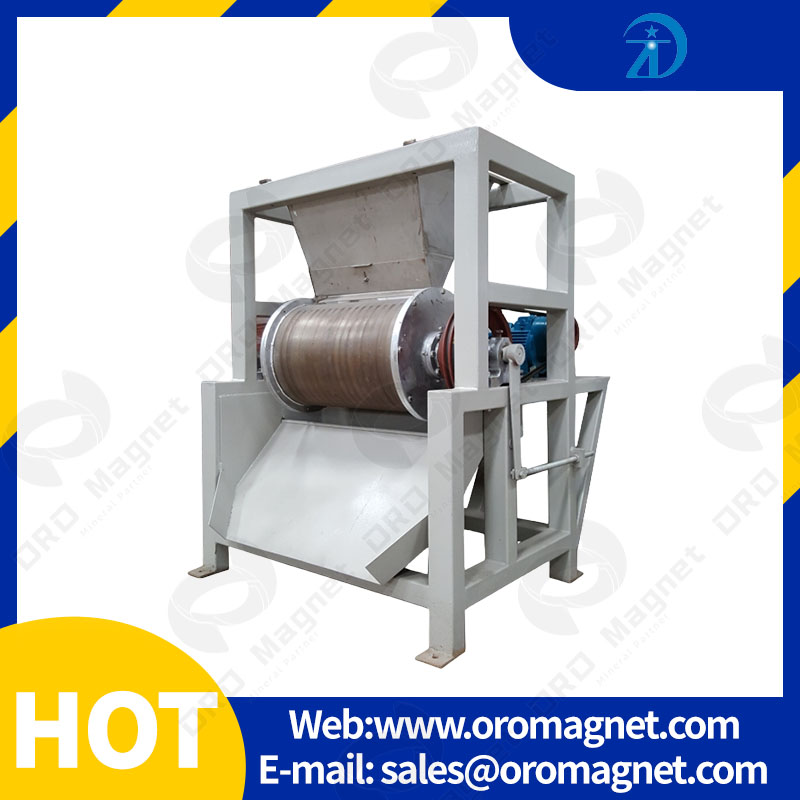

    Half counter-current water concentration drum magnetic separator


    Product characteristic


    1. It’s mainly made from rack, roll drum of permanent magnetic, transmission, feeding mine box, slot body, wash device, adjustable magnetic device and so on.

    2. The magnetic system was hung on the central axis; its support point is put on the axis of rack directly.

    3. We can adjust the magnetic angle among the fixed range.Because of the large drum diameter, the ore feeding and ore discharging are smooth and steady and the machine has a large area for selcection and also has a good effect on separation.

    4. Also owing to the large drum diameter ,it have many advantages such as: low rotational speed ,running steddy, low noise and convenient maintenance.


    Operating process


    When the mineral slurry flow into the magnetic field zone, the strong magnetic ore is absorbed on the surface of the ring drum, but the weak magnetic and non-magnetic mineral grain are dumped out.

    The strong magnetic ore absorbed on the surface of the ring drum can rotate with the ring drum and at last it is carried to magnetic field area and then it is washed into concentrate mineral slot by rinse water, which finishes the operation of separation.


    Operation scope


    Permanent magnetic drum separator is applicable for selecting more strong magnetic ore, and eliminating the strong magnetic ore in the non-metallic mineral.


    Model

    Motor

    (kw)

    Speed of bucket

    (r/min)

    Capacity

    (t/h)

    Shell size

    (mm)

    weight

    (kg)

    CTB600×900

    1.5

    40

    8-15

    600×900

    750

    CTB600×1200

    1.5

    40

    10-20

    600×1200

    1050

    CTB600×1800

    2.2

    40

    15-30

    600×1800

    1340

    CTB750×1800

    3.0

    35

    20-45

    750×1800

    2100

    CTB900×1800

    4.0

    28

    25-55

    900×1800

    3000

    CTB900×2400

    4.0

    28

    35-70

    900×2400

    3800

    CTB1050×2100

    5.5

    22

    45-90

    1050×2100

    4500

    CTB1050×2400

    5.5

    22

    52-100

    1050×2400

    5000

    CTB1200×2400

    7.5

    19

    82-120

    1200×2400

    6200


    Permanent Magnet Strong magnet magnetic ro Ore Separator ISO9001
