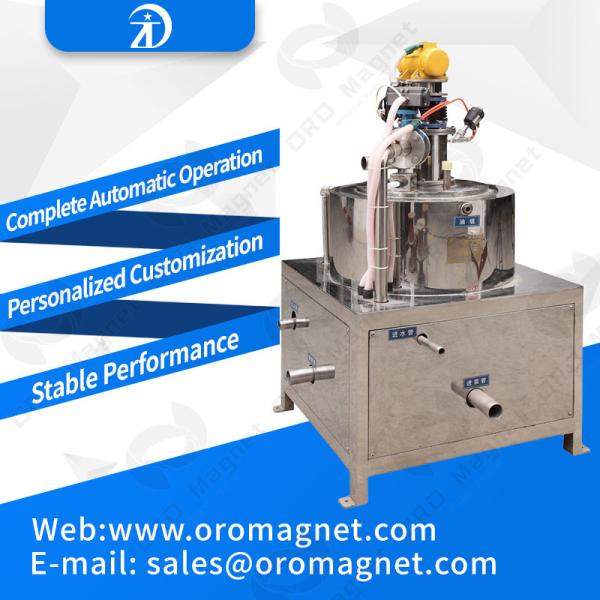

    High Intensity Wet Magnetic Ore Separator/Self Cleaning Magnetic Separator

    Ask Lasest Price
    Brand Name : ZT
    Model Number : 3A190
    Certification : ISO9001:2008
    Price : Negotiable
    Delivery Time : Within 20 days after the advance payment is made
    • Product Details
    • Company Profile

    High Intensity Wet Magnetic Ore Separator/Self Cleaning Magnetic Separator

    Easy To Operate Coltan Processing Plant Wet Magnetic Ore Separator


    Company profile


    Foshan Zhongtai Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries. The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Zhongtai Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc.


    Product characteristic


    This machine has high intensity magnetic field and high gradient magnetic field, and the magnetic field distribute evenly. It has an obvious efficiency in iron remove.Applying water to cool the machine, it can decrease the temperature about 20℃,enhanced the life span of the coil. Brake valve applying the import material, the valve have a good quality and can be durable.When you closed the valve, there is no slurry effusion. The netting is made from the special material. When the current of the loop is switched off, there is no residual magnetism, so it is very easy to discharge the iron.


    Advantages


    1. Technology parameter of contrast

    2. Easy cleaning

    3. High magnetic induction intensity

    4. Quality assurance


    Operation process


    Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing. After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.


    Technology parameter of contrast


    Model

    1.5A160

    3A89

    7A250

    7A300

    11A250

    18.5A250

    20A400

    Magnetic field strength(T)

    2.5

    2.5

    3

    3

    3.5

    3

    3.5

    Input voltage(ACV)

    220

    380

    380

    380

    380

    380

    380

    Maximumoutput current(DCA)

    10

    7

    20

    20

    20

    55

    25

    Maximum coil power(KW)

    1.5

    3

    7

    7

    11

    18.5

    20

    Insulation method

    E

    E

    E

    E

    E

    E

    E

    Cooling method

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    water and oil double cooling

    Water and oil double cooling

    Magnetic lumen diameter(mm)

    160

    89

    250

    300

    250

    250

    400

    Pipe size(mm)

    50

    50

    89

    89

    89

    89

    89

    yield(m³/h)

    3-10

    0.1-0.5

    10-30

    15-30

    10-30

    10-30

    20-60

    dimension(mm)

    946(H)

    500*500*

    1000

    1200*1200*

    1850

    1200*1200*

    1850

    1200*1200*

    1850

    1400*1400*1850

    1500*1500*

    1850

    Main machine weight

    (KG)

    180

    250

    1050

    1070

    1210

    1500

    3000

    Usage

    Applicable for 40-400 mesh feedstock of iron elimination


    Application scope


    Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.
