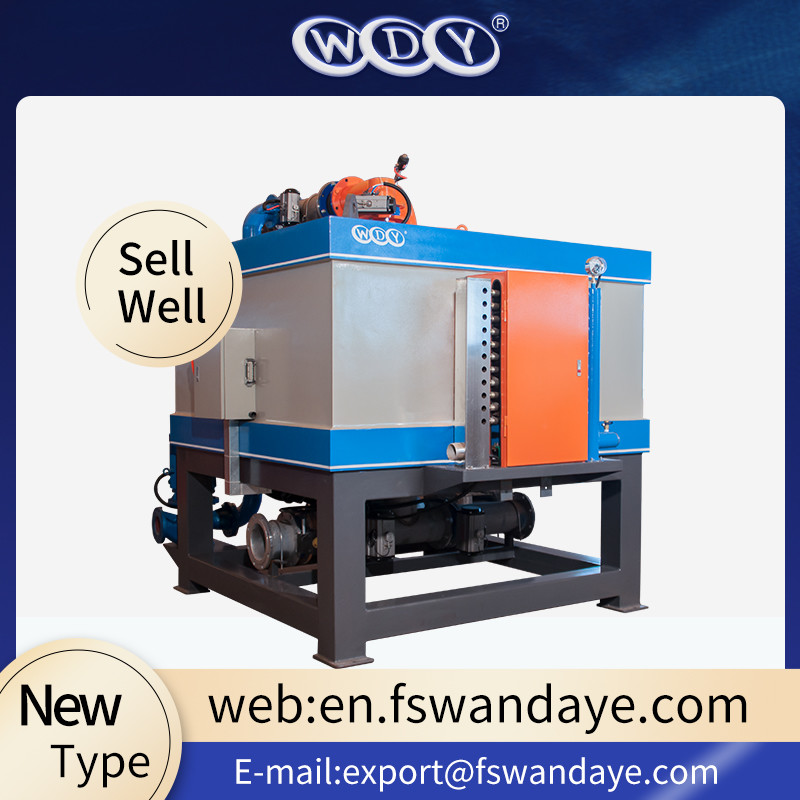

    High Intensity Magnetic Separation Equipment For Kaolin Feldspar Ceramic Slurry Quartz

    Ask Lasest Price
    Brand Name : WANDAYE
    Model Number : WS-750-V
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 50 SETS
    Delivery Time : Within 35 days after the advance payment is made
    • Product Details
    • Company Profile

    High Intensity Magnetic Separation Equipment For Kaolin Feldspar Ceramic Slurry Quartz

    High Intensity Magnetic Separation Equipment For Kaolin Feldspar Ceramic Slurry Quartz


    Company profile

    Foshan Wandaye Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .


    High Intensity Magnetic Separation Equipment For Kaolin Feldspar Ceramic Slurry Quartz


    Product characteristic

    A new model of separator with high efficiency.
    High intensity magnetic field.
    The temperature inside of the machine rises slowly.
    Running long time and the magnetic field intensity are not easy to decrease.

    Technology parameter


    ModelWS500-VWS750-VWS1000-VWY750-VWY1000-VBWY1200-VWY1500-V
    Magnetic field strength(T)22.52.5222.53
    Input voltage(ACV)380380380380380380380
    Maximum coil power(KW)7510315082120150180
    Insulation methodEEEEEEE
    Cooling methodwater coolingwater coolingwater coolingoil coolingoil coolingoil coolingoil cooling
    Magnetic lumen diameter(mm)5007501000750100012001500
    Pipe size(mm)100150200150200250300
    yield(m³/h)20-4530-6550-10030-6550-10050-15070-180
    dimension(mm)

    2328*

    1745*2642

    2659*

    1978*2518

    3052*

    2185*2814

    2958*

    2294*3091

    3503*

    2658*3392

    3950*

    2926*3746

    4349*

    3180*3706

    Main machine weight14000166002600016000280005300065000
    (KG)
    UsageApplicable for 40-400 mesh feedstock of iron elimination

    Operation process

    After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
    Application scope

    Non-metallic mineral: It is used for purifying the non-metallic mineral such as quartz, feldspar and kaolin.
    Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
    Non-ferrous metals mineral: used for separating wolframite from pyrope
    Rare earth ore: recycle tantalum-niobium ores and monazite.
    other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.


    client producing photo as follow

    High Intensity Magnetic Separation Equipment For Kaolin Feldspar Ceramic Slurry Quartz

    High Intensity Magnetic Separation Equipment For Kaolin Feldspar Ceramic Slurry Quartz

    High Intensity Magnetic Separation Equipment For Kaolin Feldspar Ceramic Slurry Quartz
