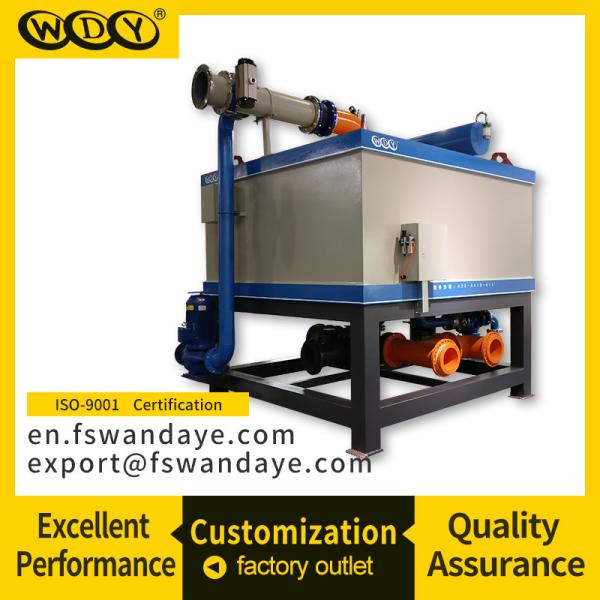

    Coil Cooling Mining Industry High Intensity Magnetic Separator

    Ask Lasest Price
    Brand Name : WDY
    Model Number : WY1000-V
    Certification : ISO9001:2008
    Price : Negotiable
    Supply Ability : 15pcs per month
    Delivery Time : Within 25 days after the advance payment is made
    • Product Details
    • Company Profile

    Coil Cooling Mining Industry High Intensity Magnetic Separator


    Magnetic Separator Machine 5T Automatic Water-cooling for Slurry 380ACV 1400DCA


    Mining Industry High Intensity Magnetic Separator Machine With Automati coil Cooling kaolin feldspar slurry ceramic


    Product characteristic


    Automatic Water-cooling Eletromagnetic Slurry Separator Series advantages :

    1. High intensity magnetic field;

    2. The temperature inside of the machine rises slowly;

    3. The magnetic field intensity are not easy to decrease when the machine run for a long time;

    4. Long working period;

    5. Have a wide range of adaption in the particle of feeding ore and the thickness of slurry;

    6. High efficiency in mineral processing;

    7. Easy to manual and maintain.


    Coil Cooling Mining Industry High Intensity Magnetic Separator


    Operation process


    Application scope


    Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation.

    1. Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.

    2. Non-ferrous metals mineral: used for separating wolframite from pyrope.

    3. Rare earth ore: recycle tantalum-niobium ores and monazite.

    4. other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.


    Technology parameter


    Model

    750-V

    1000-V

    1200-V

    1500-V


    Magnetic field strength(T)

    2

    2

    2

    2


    Input voltage(ACV)

    380

    380

    380

    380


    Maximum output current(DCA)






    Maxiumum coil power(KW)

    82

    120

    150

    180


    Insulation method

    E

    E

    E

    E


    Cooling method

    Water cooling

    Water cooling

    Water cooling

    Oil cooling


    Magnetic lumen diameter(mm)

    750

    1000

    1200

    1500


    Pipe size(mm)

    200

    150

    100

    300


    yield(m³/h)

    80-200

    40-100

    30-80

    50-180


    demension(mm)

    2710*2410*3500

    2600*2000*3000

    2370*2000*2650

    4349*3180*3706


    Main machine weight(KG)

    16000

    45000

    53000

    65000


    Usage

    Applicable for 40-400 mesh feedstock of iron elimination
