20A High Intensity Magnetic Separator Machine For Industrial

    Buy cheap 20A High Intensity Magnetic Separator Machine For Industrial from wholesalers

    Buy cheap 20A High Intensity Magnetic Separator Machine For Industrial from wholesalers
    • Buy cheap 20A High Intensity Magnetic Separator Machine For Industrial from wholesalers
    • Buy cheap 20A High Intensity Magnetic Separator Machine For Industrial from wholesalers
    • Buy cheap 20A High Intensity Magnetic Separator Machine For Industrial from wholesalers

    20A High Intensity Magnetic Separator Machine For Industrial

    Ask Lasest Price
    Brand Name : WDY
    Model Number : WG220B-V-11
    Certification : ISO9001:2008
    Price : Negotiable
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : Within 35 days after the advance payment is made
    • Product Details
    • Company Profile

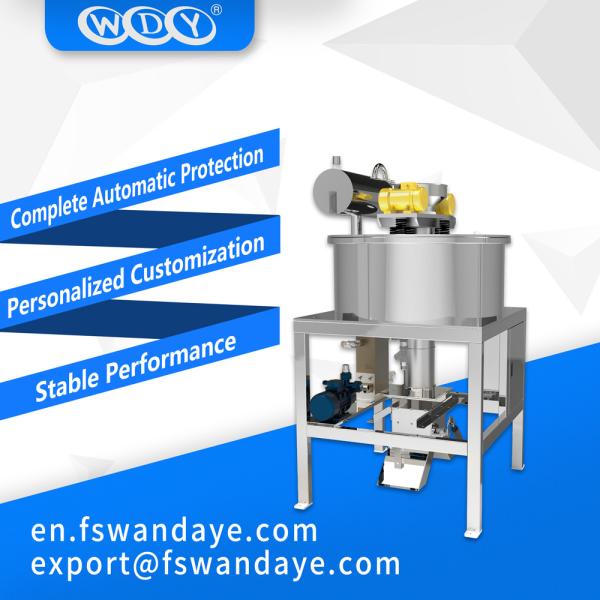

    20A High Intensity Magnetic Separator Machine For Industrial

    20A High Intensity Magnetic Separator Machine For Industrial
    Dried-powder Magnetic Separation Equipment With High Intensity Stable Magnetic Field

    Foshan Wandaye Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc.



    Applications:

    • Coal Industries
    • Abrasive Industries
    • Chemical Industries
    • Paper and Pulp Industries
    • Ceramic Industries
    • Rubber Industries
    • Petroleum Industries
    • Animal Feed Industries
    • Recycling Industries
    • Mineral Processing
    Features:
    • Electromagnetic Separator have a deep penetrating magnetic field with stainless steel case.
    • Electromagnetic Separator needs low maintenance and are easy to install and operate.
    • Electromagnetic Separator can function smoothly even in the hazardous environments.
    • No manual cleaning is required and reduces downtime for the end user.

    Technical parameter

    ModelWG160B-V-3WG220B-V-3WG300-V-7WG220B-V-11WG430-V-11WG220-V-15WG600-V-20
    Magnetic field strength(t)2233353
    Input voltage(VAC)380220380380380380380
    Maximun output current(A)1572020203040
    Maximum coil power(KW)33711111520
    Insulation categoryEEEEEEE
    Cooling methodwater and oil coolingwater and oil coolingwater and oil coolingwater and oil coolingwater and oil coolingwater and oil coolingwater and oil cooling
    Magnetic lumen diameter(mm)160220300220430220600
    Yield(m3/h)0.5-1.5438331.5-40.5-31.5-61-33-8
    Dimension(mm)700*700860*8601320*13201260*12601500*15001350*11001500*1500
    *1450*1540*2500*2017*2500*1850*2000
    Main machine weight(kg)45049010201130121015002000
    Usage60-300 mesh feedstock of iron elimination
